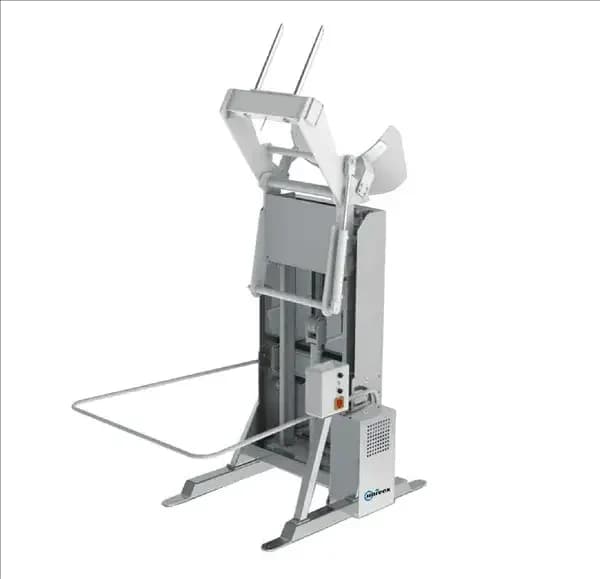

Univex BSBL78 Spiral Bowl Lifter

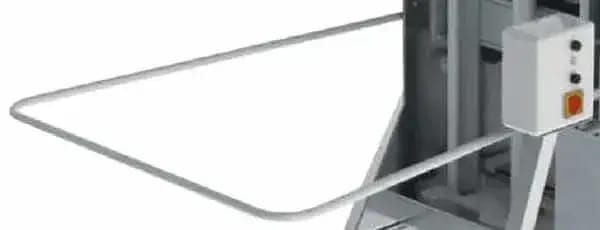

Spiral Bowl Lifter, 78"H, single button operation, built-in safety guard, single hydraulic piston with 2 balance pistons, welded heavy duty construction, 3 hp motor, 220v/60/3-ph, 8.5 Amps, ETC, CETL The Univex BSBL78 Spiral Bowl Lifter is specifically designed to be used with a Univex SL160RB Silverline Spiral Mixer, Univex SL200RB Silverline Spiral Mixer, Univex SL250RB Silverline Spiral Mixer, or Univex SL300RB Silverline Spiral Mixer. This unit can lift bowls with 660 lbs of dough and discharge the product at a height of 78”. Single button operation keeps this unit easy to use. A built-in safety guard is included for the safety of operators. A single hydraulic piston lifts the unit to its maximum height while two balanced pistons are used to tip the bowl for discharge. The Univex BSBL78 Spiral Bowl Lifter features welded heavy-duty construction for durability for years of operation. The maximum dimensions of this unit are 131.1” in height (when lifting), 52.4” in width, and 85.8” front-to-back. This unit uses a powerful 3 HP motor with 220v/60/3-ph power drawing 9.0 amps at full load. Standard Features: Built-in safety guard Simple reliable service Easy controls, single button operation Powerful single hydraulic piston provides the lifting power while two perfectly balances pistons provide the tipping motion Motor: 3HP 400V/50Hz/3ph Warranty: One year, on-site parts and labor
